Fully Automatic High-Speed Laminator Inline with Flip-Flop Stacker
Models: DX-1180 / DX-1450 / DX-1650 / DX-2100
Fully automatic laminator with integrated flip-flop stacker — 30–170 m/min, handles single flute and multi-ply corrugated up to 2100mm.
Product Overview
Engineered for Excellence

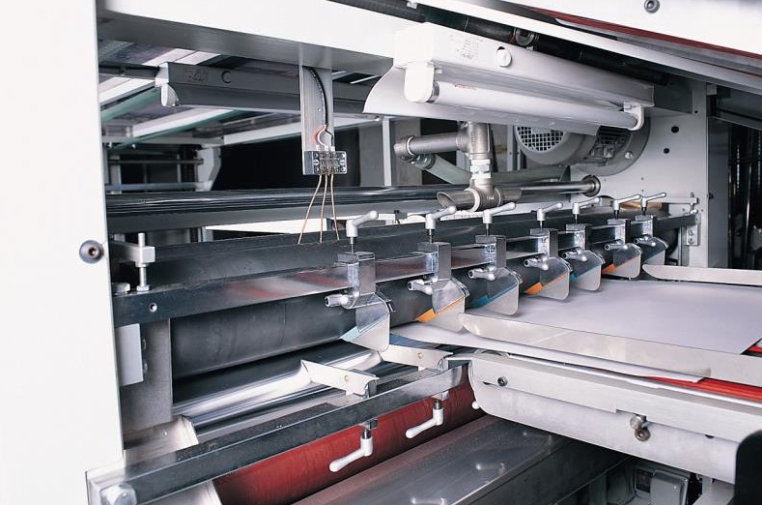

The DX-1180/1450/1650/2100 series by Dingxing / Dingyi Machinery is a fully automatic high-speed laminator with an integrated inline flip-flop stacker. The flip-flop stacker automatically alternates stack orientation for easy downstream handling, significantly reducing manual intervention. Suitable for single flute A/N, multi-ply (3–7) corrugated cardboard, and grey paperboard over 300 GSM, it covers packaging from standard cartons up to very large industrial boxes with widths up to 2100mm. Speed of 30–170 m/min with ±1.5mm accuracy across all four models.
Key Features
Advanced Capabilities
Flip-Flop Stacker Integration
Integrated inline flip-flop stacker automatically alternates stack orientation for easy downstream handling.
30–170 m/min Production Speed
High-speed operation from 30 to 170 m/min for maximum throughput on continuous production runs.
Large Format up to 2100mm
DX-2100 handles paper up to 2100×2100mm for wide-format industrial and large carton packaging.
Heavy Substrate Support
Top sheet 120–600 g/m², bottom board 0.5–10mm. Handles single flute, multi-ply (3–7) and 300+ GSM board.
Four Model Sizes
DX-1180, DX-1450, DX-1650, and DX-2100 provide comprehensive coverage of large-format laminating needs.
Dingxing/Dingyi Technology
Manufactured by Dongguan Dingyi Machinery Co. and Dongtai Dingxing Machinery Technology Co.
Technical Specifications
Technical Parameters
| Parameter | DX-1180 | DX-1450 | DX-1650 | DX-2100 |
|---|---|---|---|---|
| Max Paper Size (mm) | 1180×1180 | 1450×1450 | 1650×1650 | 2100×2100 |
| Min Paper Size (mm) | 350×350 | 400×350 | 400×350 | 500×450 |
| Top Sheet (g/m²) | 120–600 | 120–600 | 120–600 | 120–600 |
| Bottom Board (mm) | 0.5–10 | 0.5–10 | 0.5–10 | 0.5–10 |
| Max Speed (m/min) | 30–170 | 30–170 | 30–170 | 30–150 |
| Accuracy (mm) | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Machine Weight (kg) | 6500 | 7000 | 7500 | 8500 |
| Power (kW) | 18.5 | 26 | 28 | 29 |
Use Cases
Applications
- Large-Format Corrugated Box
- Heavy-Duty Industrial Packaging
- Food & Beverage Packaging
- Electronics Packaging
- E-commerce Logistics Packaging
