Roll To Roll Screen Printing (Joyson)
Models: JYS Series
High-precision roll-to-roll printing solution engineered for multi-color accuracy and industrial durability.
Product Overview

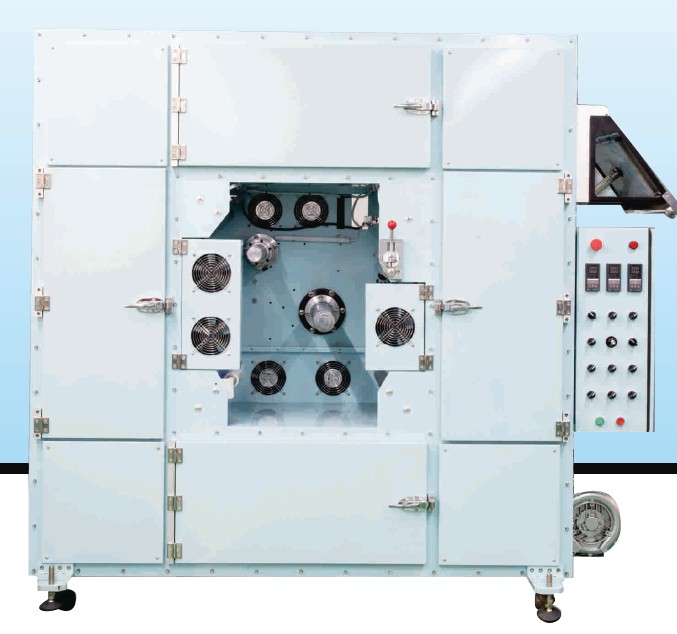

Engineered for Excellence
The Joyson Roll To Roll Screen Printing machine is a state-of-the-art solution designed for high-volume, precision manufacturing. Featuring an independent driving source and a sophisticated servo-driven carriage, it provides unmatched stability and speed control. Its precision-ground vacuum platform ensures perfect multi-color registration, while integrated static and dust elimination systems maintain the highest print quality standards. Designed for ease of use, it features a touch-screen interface and fine-tuning handles for both horizontal and vertical registration, making it ideal for the most demanding technical applications.
Key Features
Advanced Capabilities
Independent Driving System
Printing and screen upgrades adopt independent driving sources for coordinated movement and adjustable speeds.
Servo & Photoelectric Control
Precision servo system drives the printing carriage while a photoelectric eye ensures exact stroke control.
Precision Printing Platform
Overall precision grinding platform with vacuum suction pump adsorption for accurate multi-color overprinting.
Dual-Axis Fine-Tuning
Screen frame equipped with horizontal and vertical fine-tuning handles for precise color registration.
Static & Dust Elimination
Integrated static electricity elimination and dust-proof functions guarantee high-quality, clean printing.
Controlled Head Lifting
Independently controlled machine head lifting device allows for easy squeegee access and screen cleaning.
Synchronized Off-Screen Device
Adjustable scraping and ink return angles synchronized with an off-screen device for stable, even ink distribution.
Smart User Interface
Touch screen control interface for easy setting, monitoring, and counting of all printing parameters.
Technical Specifications
Technical Parameters
| Parameter | JYS-400 IR | JYS-500 IR | JYS-600 IR |
|---|---|---|---|
| Max. Winding Diameter | Ø500mm | Ø500mm | Ø500mm |
| Thickness of Material (Drying) | 48m | 48m | 60m / 80m |
| Temperature Ranges (°C) | Room temperature–130 | Room temperature–130 | Room temperature–130 |
| Rated Power Source | 3-380VAC | 3-380VAC | 3-380VAC |
| Printing Speed | 20kw / 29kw | 20kw / 29kw | 20kw / 29kw |
| Machine Dimensions (LxWxH) | 2200×940×1980mm | 2500×1200×2200mm | 2540×1300×2200/2400mm |
Use Cases
Applications
- Electronic Components
- Flexible Circuits
- Membrane Switches
- Heat Transfer Labels
- Security Printing
- Industrial Labels
